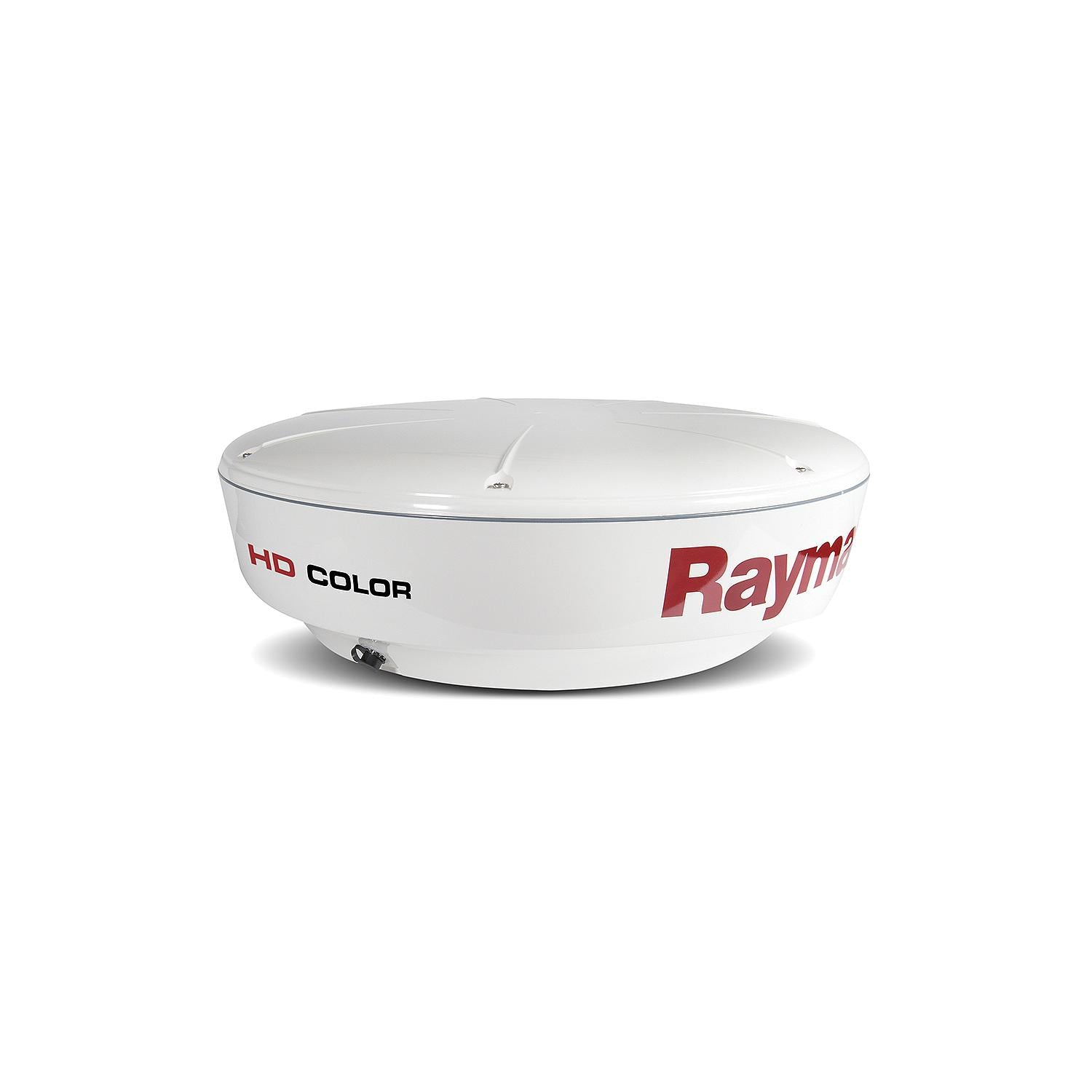

Raymarine T70168 18" HD Color Radome Scanner w/10m Cable
Raymarine T70168 18" HD Color Radome Scanner w/10m Cable is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Raymarine T70168 18" HD Color Radome Scanner w/10m Cable
Highlight title
Text to highlight a key feature of your product
Description
Description
Compatible with the following Multifunction Displays: aSeries; c Series; e Series; NEW eS Series; gS Series; C Series Widescreen; E Series Widescreen; G Series.
- Networking: SeaTalkHS
- Peak Power Output (kW): 4.0 kW (nominal)
- Antenna Type: Patch Array
- Beam Width (Nominal): 4.9° horizontal, 25° vertical
- Polarization: Horizontal
- Rotation Rate: Range less than 3 miles – 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected) | Range greater than 3 miles - 24 RPM (nominal)
- Power Consumption: 60 W (25 W Standby)
- Maximum Range Scale: 48 nm
- IF Frequency: 70 MHz (nominal)
- Transmitting Frequency: 9405 +/– 25 MHz
- Transmitter: Solid-state modulator driving Magnetron
- Standby Mode: Magnetron heater and control left on, all other services off
- Duplexer: Circulator
- CE Approval: Conforms to 1999/5/EC
- FCC Approval: Conforms to 47CFR Part 2 and Part 80
